Product Details

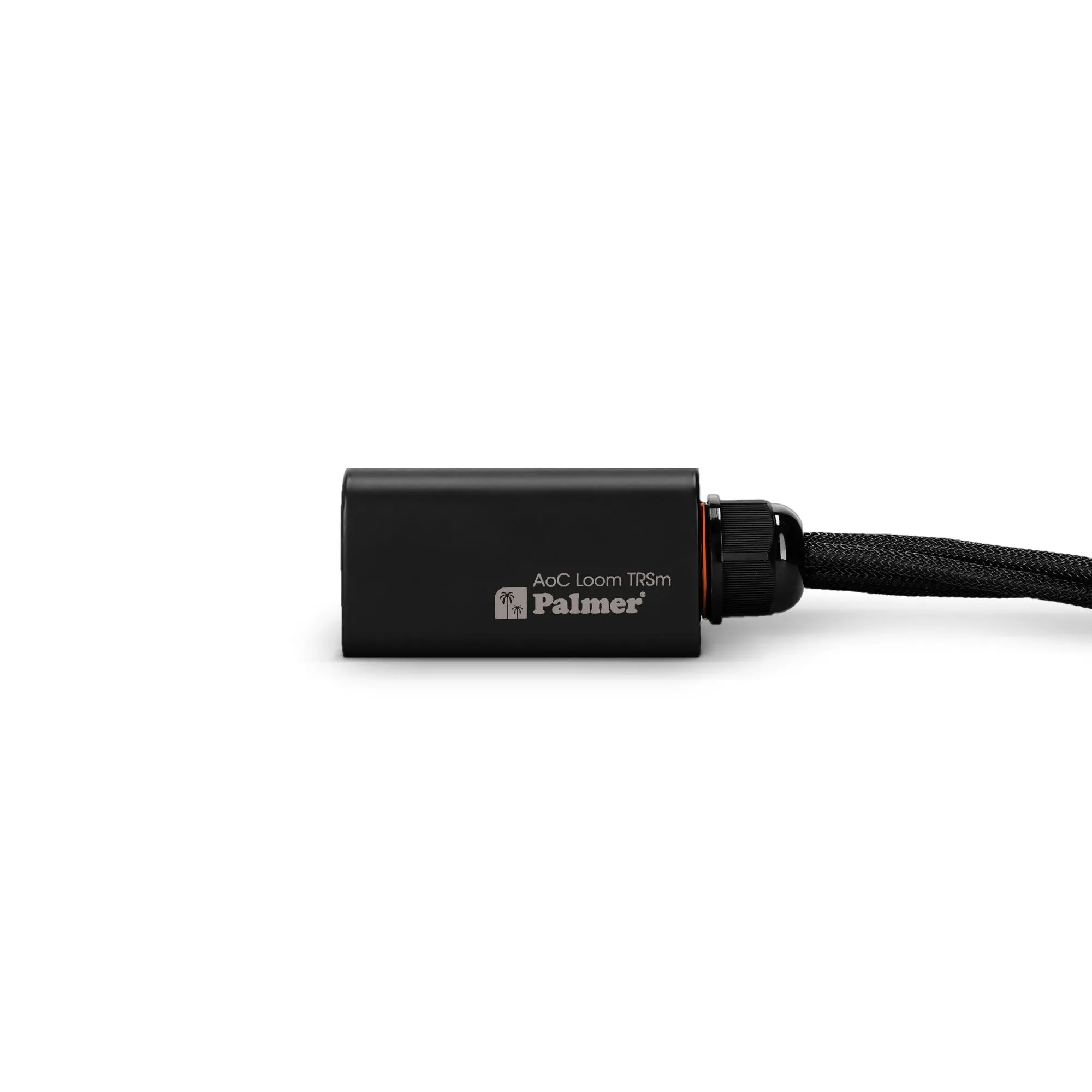

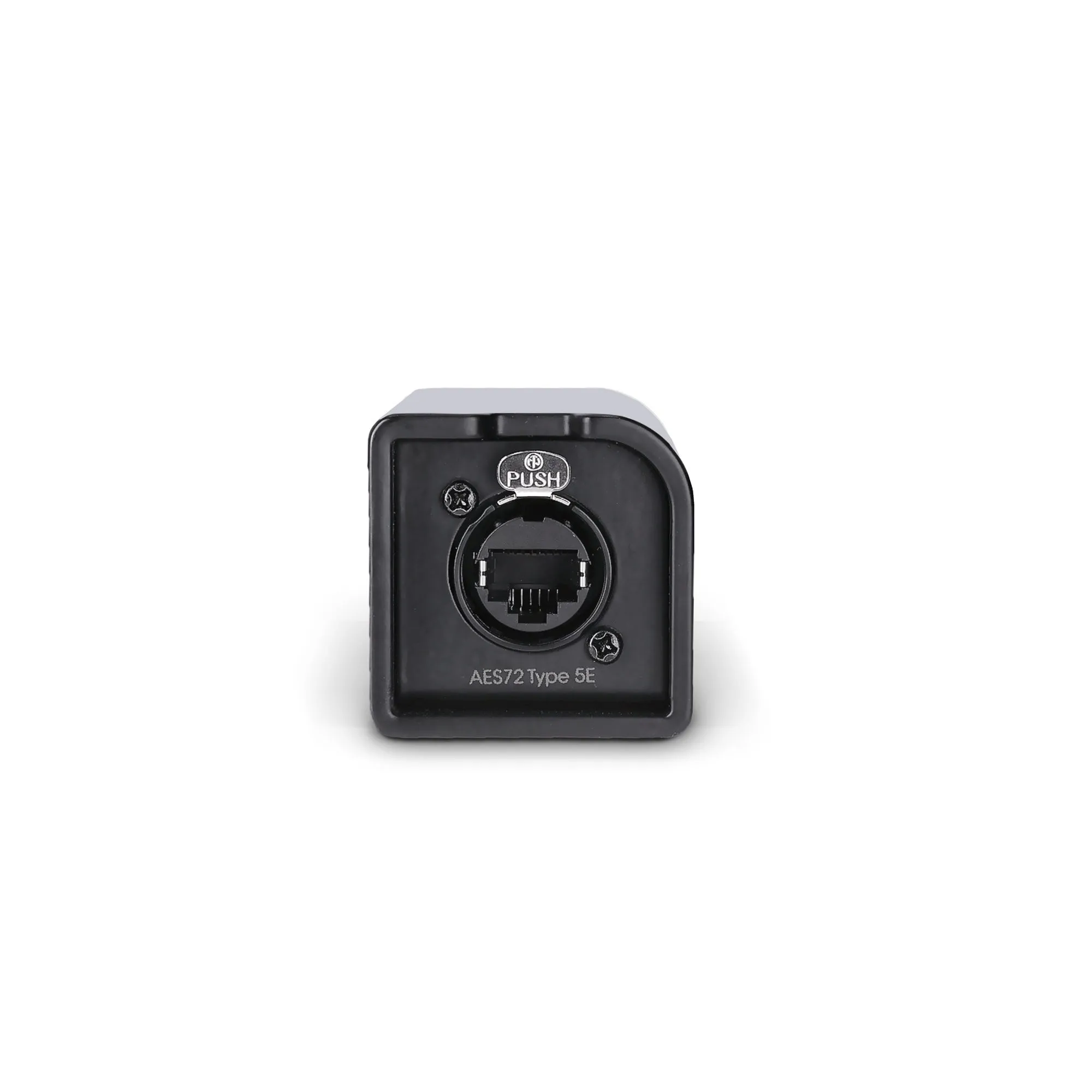

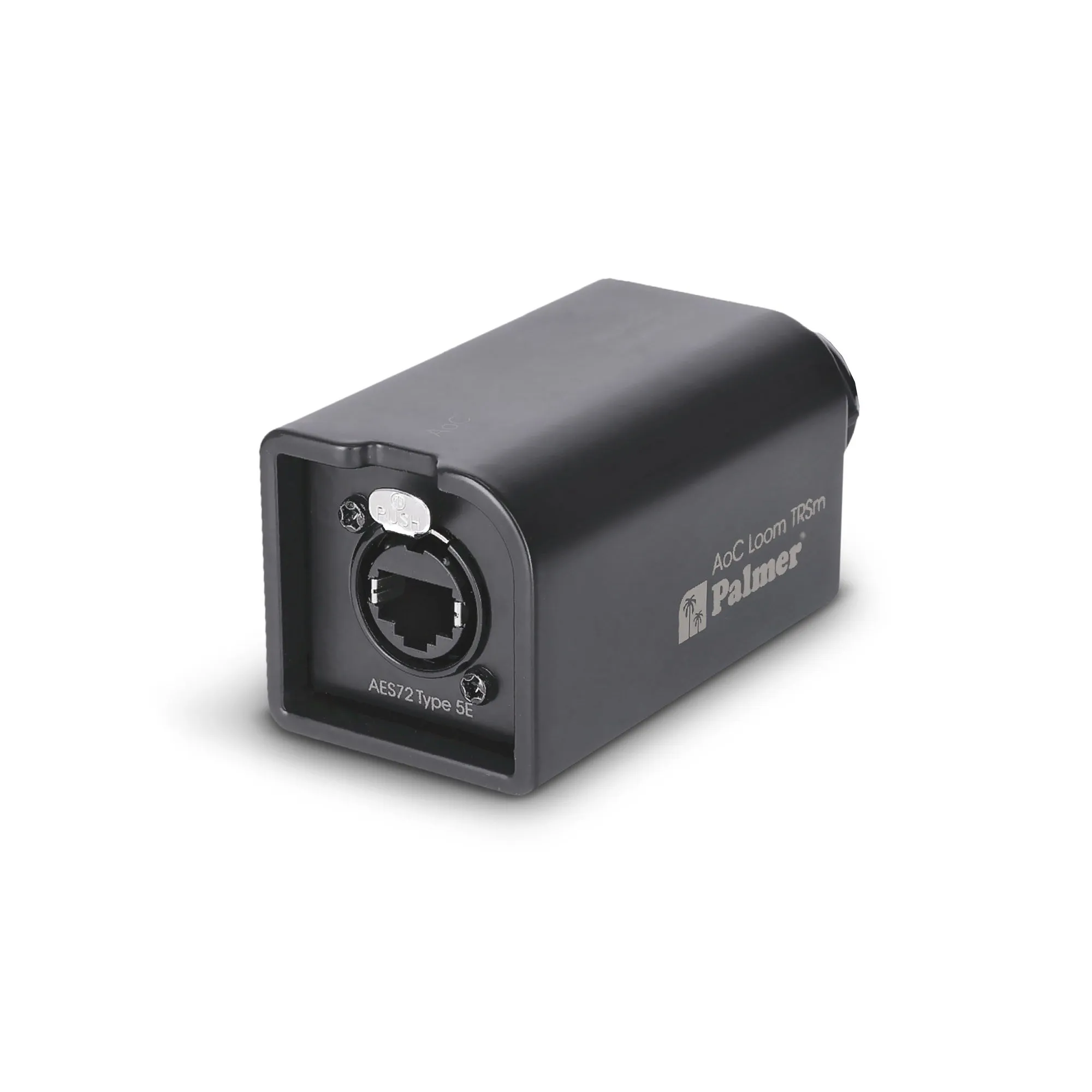

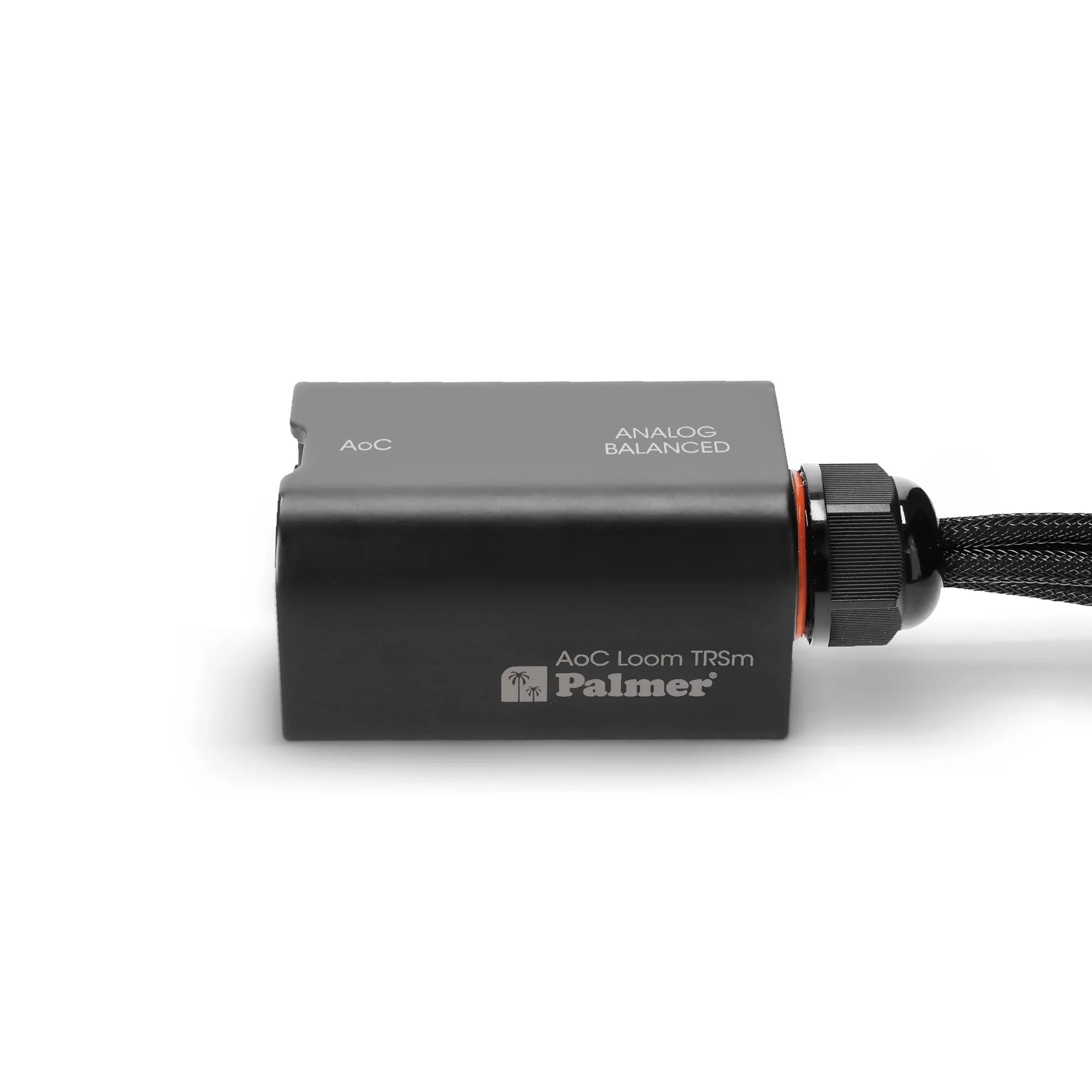

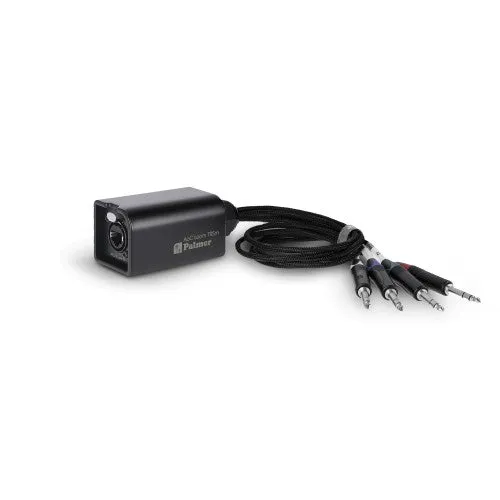

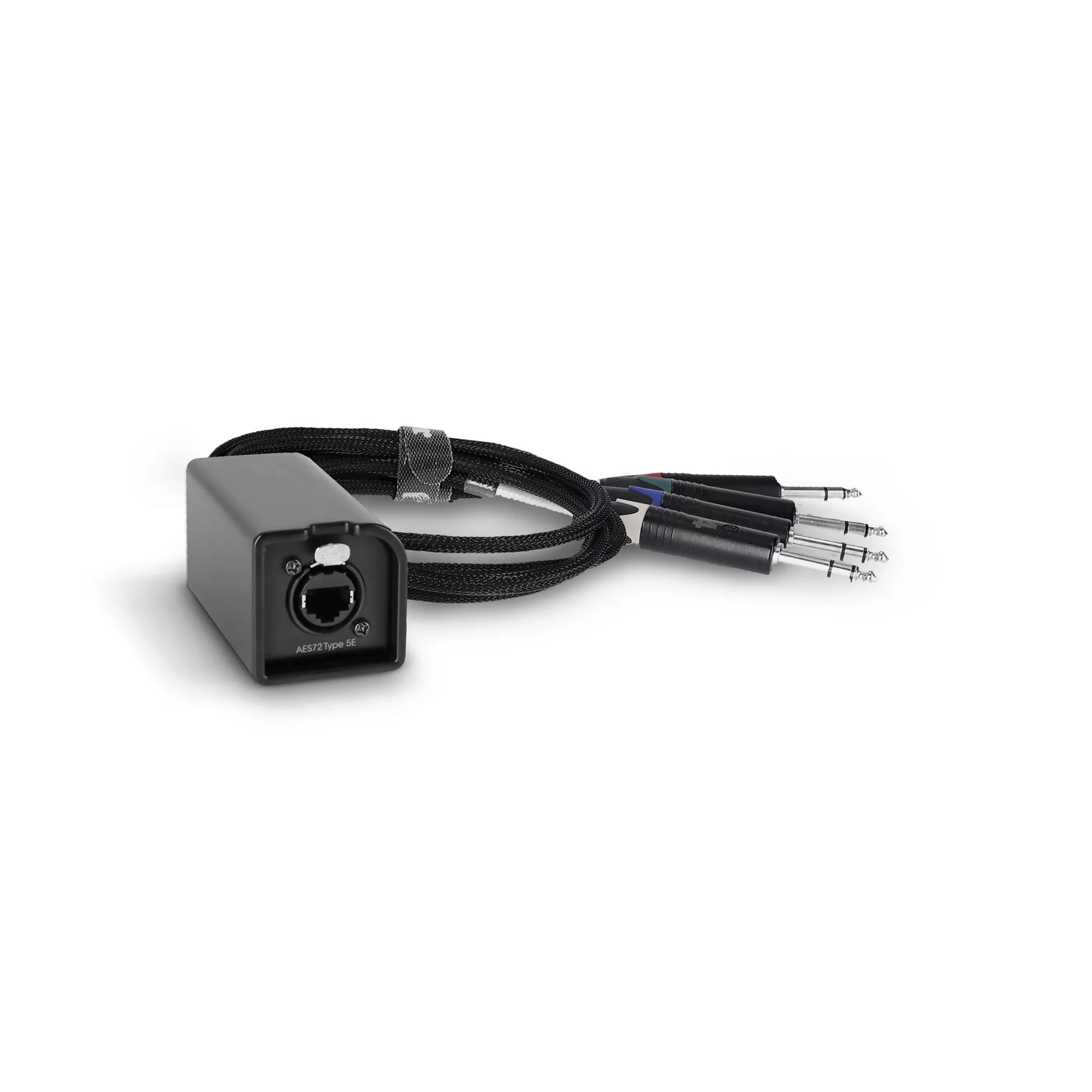

The P AOC L TRS M is a multicore adapter cable that facilitates the stable transmission of 4 separate analog and balanced audio signals through a network cable (not included). The 6.3 mm TRS jacks are numbered and color-coded for easy identification. The Ethercon connection is safeguarded against unlocking to prevent accidental cable disconnection.

Audio is transmitted via a single, standard Ethernet cable, allowing the P AOC L TRS M to be used flexibly across various applications, be it for live concerts, studio sessions, press conferences, or other productions.

Featuring high-quality Neutrik components, a solid aluminum-steel housing, and robust mesh cables with a 50 cm splice, the P AOC L TRS M guarantees reliable signal transmission and durability in professional environments. Its simple, high-quality design also enhances the visual appeal of any setup.

All these factors make the P AOC L TRS M a reliable and durable tool that provides an affordable and flexible alternative to conventional 4-channel multicores without compromising audio quality - as you have always come to expect from Palmer.

Features

  • 4 balanced analogue audio channels over Cat5e or higher (Ethercon cable not included)
  • Ethercon to 4 x 6.3 mm TRS jack
  • AES72 Type 5E
  • Premium Neutrik components
  • Robust mesh cable, 0.5 m
  • Solid casing made of aluminium and steel
  • Engineered in Germany

Specifications

  • Product type: Audio over Cat adapter
  • Number of inputs: 4
  • Input type: Balanced
  • Input connector: RJ45
  • Number of outputs: 4
  • Output type: Balanced
  • Output connector: 6.35 mm TRS stereo jack
  • Material: Aluminium, Steel
  • Cable Length: 0.5 m
  • Width: 128 mm
  • Depth: 140 mm
  • Height: 50 mm
  • Weight: 0,35 kg
  • Operating Temperature: - 20 - 70 °C
  • Air humidity: > 80 % (non-condensing)
Audio
  • Max. input level (< 1% THD, 1 kHz): 32 dBu dBu
  • Frequency range: 0 Hz - 20 kHz
  • THD (1 kHz, 4 dBu, unity, unweighted): < 0,0005 %
RJ45 pin layout (AES72 Type 5E, balanced wired, even = )
  • Pin 1: Channel 3 -
  • Pin 2: Channel 3
  • Pin 3: Channel 4 -
  • Pin 4: Channel 1
  • Pin 5: Channel 1 -
  • Pin 6: Channel 4
  • Pin 7: Channel 2 -
  • Pin 8: Channel 2
Channel color code
  • Channel 1: Red
  • Channel 2: Green
  • Channel 3: Blue
  • Channel 4: White
Palmer AOC LOOM TRS M Audio Over Cat Loom From Ethercon to 4 x 6.3 mm TRS Jack
  • DefaultTitle

$ 61.57

$ 47.36
