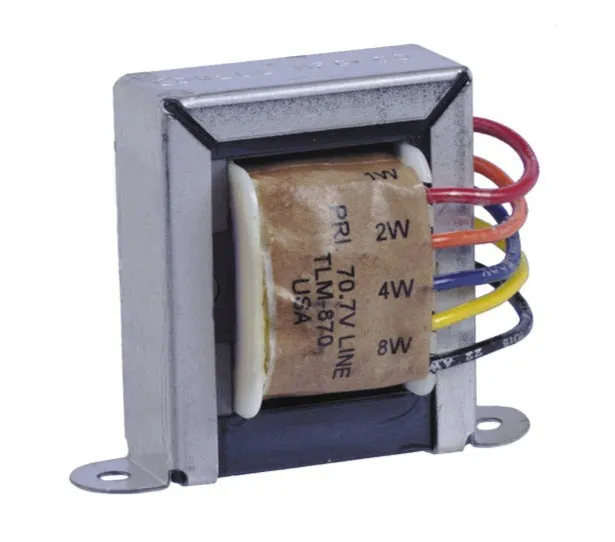

Line-matching transformer for high quality audio systems and general purpose paging applications where wide frequency response, low insertion loss, and high power handling are critical considerations. The TLM series features the industry standard open-housing design and color-coded leads for fast installation.

Specifications

• Primary Voltage:  70V
• Power Rating:   8W
• Primary Taps:  1, 2, 4, 8W
• Secondary Impedance:  8, 4 ohms
• Frequency Response:  50Hz–15kHz (±1dB)
• Lead Length:  8 in.
• Leads:  Color-coded
• Unit Size:  2.375 in. x 2.875 in. x 1.682 in.
