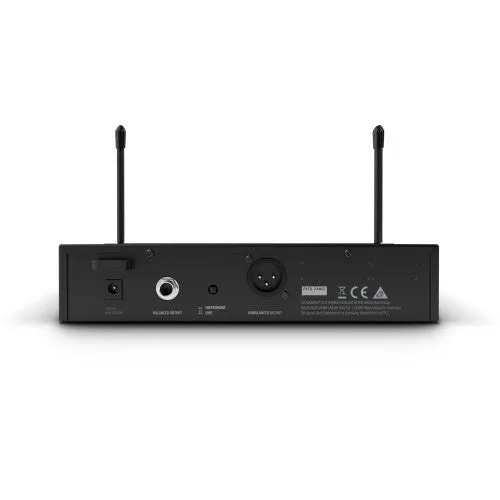

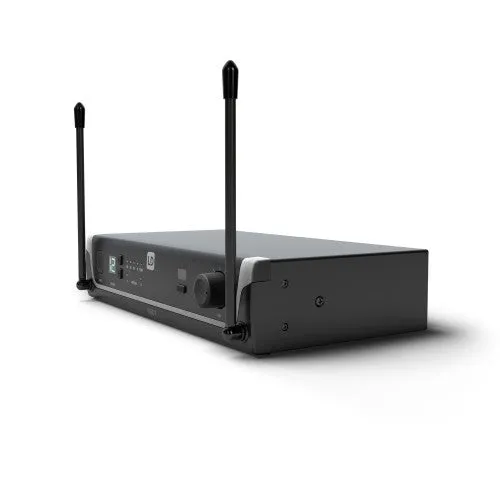

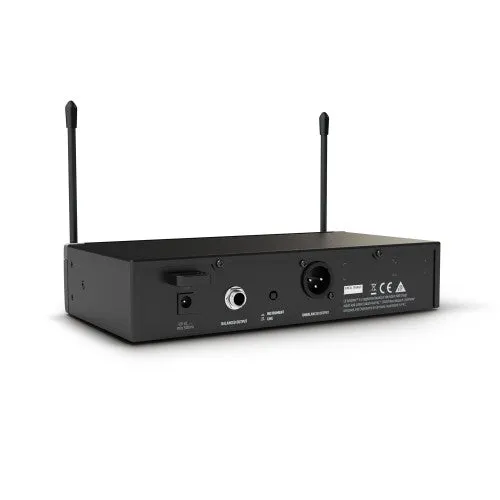

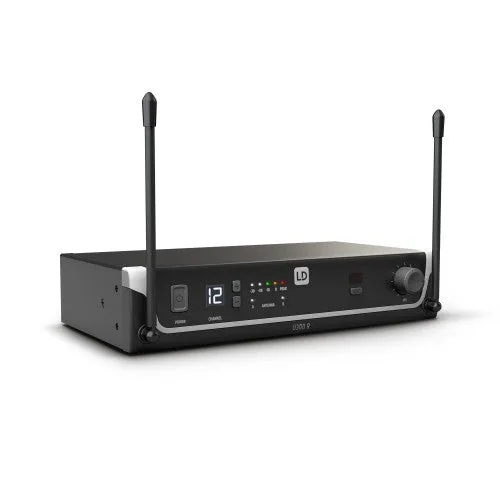

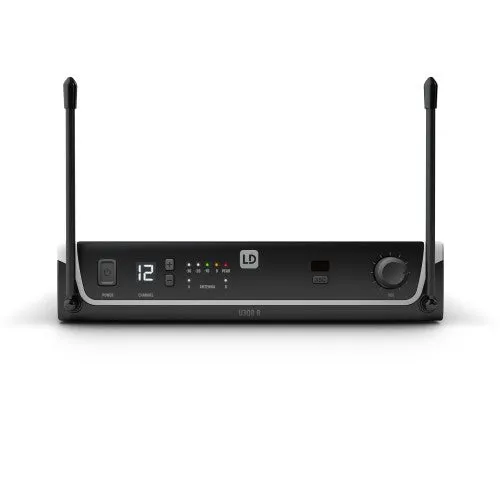

Operating in the 470 - 490 MHz band, this U300® Series diversity UHF receiver features FM technology, 12 channels and a 25 Hz - 16 KHz frequency response. It provides convenient one-touch IR syncing with the series' microphone or bodypack transmitters for quick and trouble-free setup while a pilot tone squelch circuit prevents noise and interference. The U3047 receiver comes in a stylish metal housing sporting a bright LCD channel display, up and down channel selector buttons plus LED audio level and antenna indicators. The rear panel provides balanced XLR and unbalanced 1/4" outputs. For use with guitar and bass amplifiers, the unbalanced output is switchable to instrument level. The receiver package includes a power adapter and balanced XLR audio cable.
| Product type | Wireless Microphone System Accessories |
| Type | Receivers |
| Modulation Type | FM |
| Transmission frequency range | 470 - 490 MHz |
| Channels | 12 |
| Groups | 1 |
| Antenna inputs | 2 x fixed |
| Frequency response | 25 - 16.000 |
| Noise reduction | Squelch |
| Transmission optimization | Pilot tone |
| Total Harmonic Distortion (THD) | < 0.3 % |
| Signal-to-noise ratio | 104 dB |
| Audio output, balanced | XLR |
| Audio output, unbalanced | 6.3 mm jack, switchable unbalanced output level |
| Max. output level | 10 dBu (Bal), 7 dBV (Unbal, Line), 2,5 dBV (Unbal, Instr) dBu |
| Controls | ASC, Channel down, Channel up, Line/Instrument Level, Power, volume |
| Indicators | 5 LED VU meters, Antenna A/B, LC display |
| Operating voltage | 12 V DC - 18 V DC (500 mA), external power supply |
| Width | 211 mm |
| Height | 43 mm |
| Depth | 120 mm |
| Weight | 0,7 kg |
| Accessories (included) | 2 x AA batteries, Audio cable, Power supply |
| Other features | IR frequency synchronisation |
