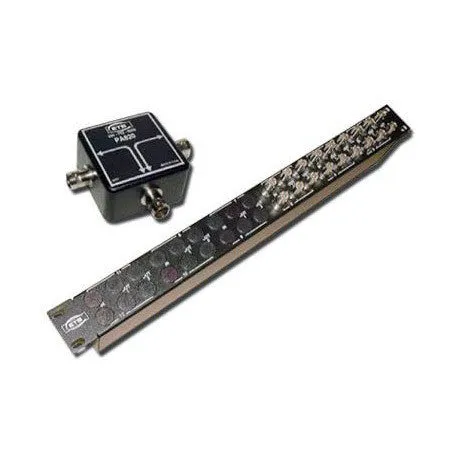

The ETS PA820 RG59 Splitter and the PA778x Series of AES/EBU Splitter Panels are carefully designed to divide the energy from a single source into equal parts, maintaining precise impedance matching. Return signals are routed back to the source with minimal crosstalk to the other port.

These devices were expressly crafted for AES/EBU standard for digital audio. They minimize losses while preserving signal intergrity. As an added benefit, our precision impedance matchng technology allows for units to be non-symmetrically applied when being cascaded. Please note that each cascade stage reduces the signal level by 3 dB.

Features/Advantages
• Allows two outputs from a single source, without interference or impedence mismatching
• Individual splitters, or rack mountable panel versions
• Panel mount models available from 2 to 12 channels
• Can be cascaded non-symmetrically for multiple outputs
• Metal cases, chassis
• Made in USA. 100% QA.

  Specifications

• Bandwith 10 kHz to 50 MHz
• Connectors (3) BNC female 75O /- 2% 50 kHz to 50 MHz (*Note - Splitting reduces signal level by 3 dB)
• Crosstalk 35 dB down 50 kHz to 30 MHz
• Dimensions Panels: 1 RU x 80 mm deep, Baluns: 69mm x 69mm x 33mm
