Product Details

The SM-4T is a heavy-duty, highly-flexible microscope designed for biological and industrial applications. This model is especially popular in the QC, repair and engraving industries thanks to its ease-of-use and reliability. With its wide zoom range and double-arm boom-stand, this model will become an indispensable instrument in any workshop or lab.

Optics

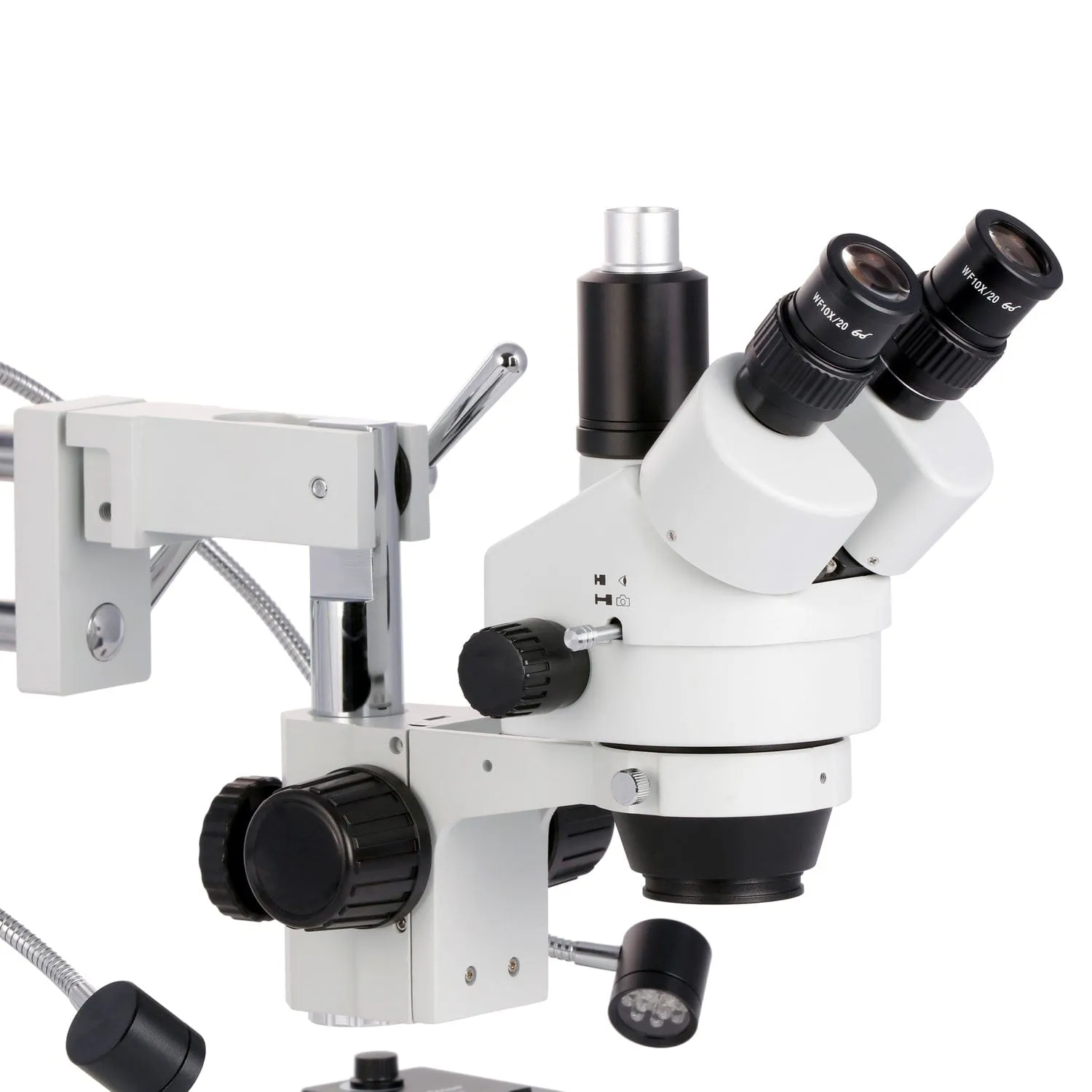

The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X wide-field eyepieces provide an ample magnification range from 7X to 45X, with high-eyepoint optics to accommodate glasses or goggles.

Ocular Adjustment

Dual ocular diopters can be adjusted to maintain consistent focus, greatly improving productivity. Rotating interpupillary adjusters simplify the process of aligning the eyepieces for each user.

Trinocular Port

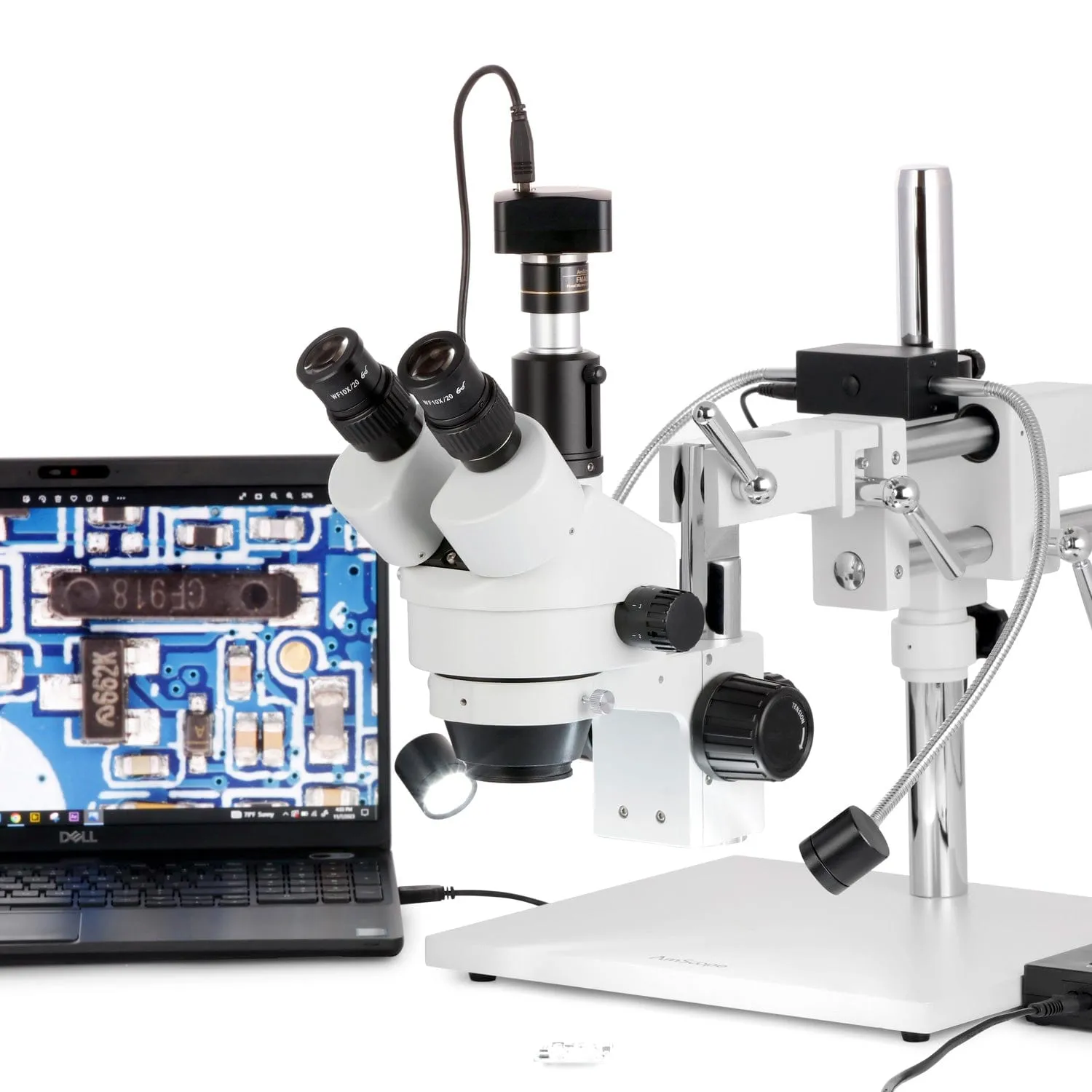

The switched trinocular photo-port provides a dedicated mount for a camera. When the photo-port is switched open, all light from the left objective is diverted to the port to provide maximum brightness for the camera to guarantee the best quality images. This microscope uses our CX series trinocular port, so it can be easily replaced with optional C-mount ports to match specific cameras.

Double-arm Boom-Stand

The multi-pivoting, double-arm stand provides a stable, flexible support system, ideal for hands-on work. Use of a drop-down column allows the head to be positioned at virtually any angle. Ball-bearings provide smooth movement of the lateral arms, which can easily pivot the microscope out of the way when it is not needed. The heavy, steel base ensures the stability of the microscope, even when laden with attachments.

Additional Items

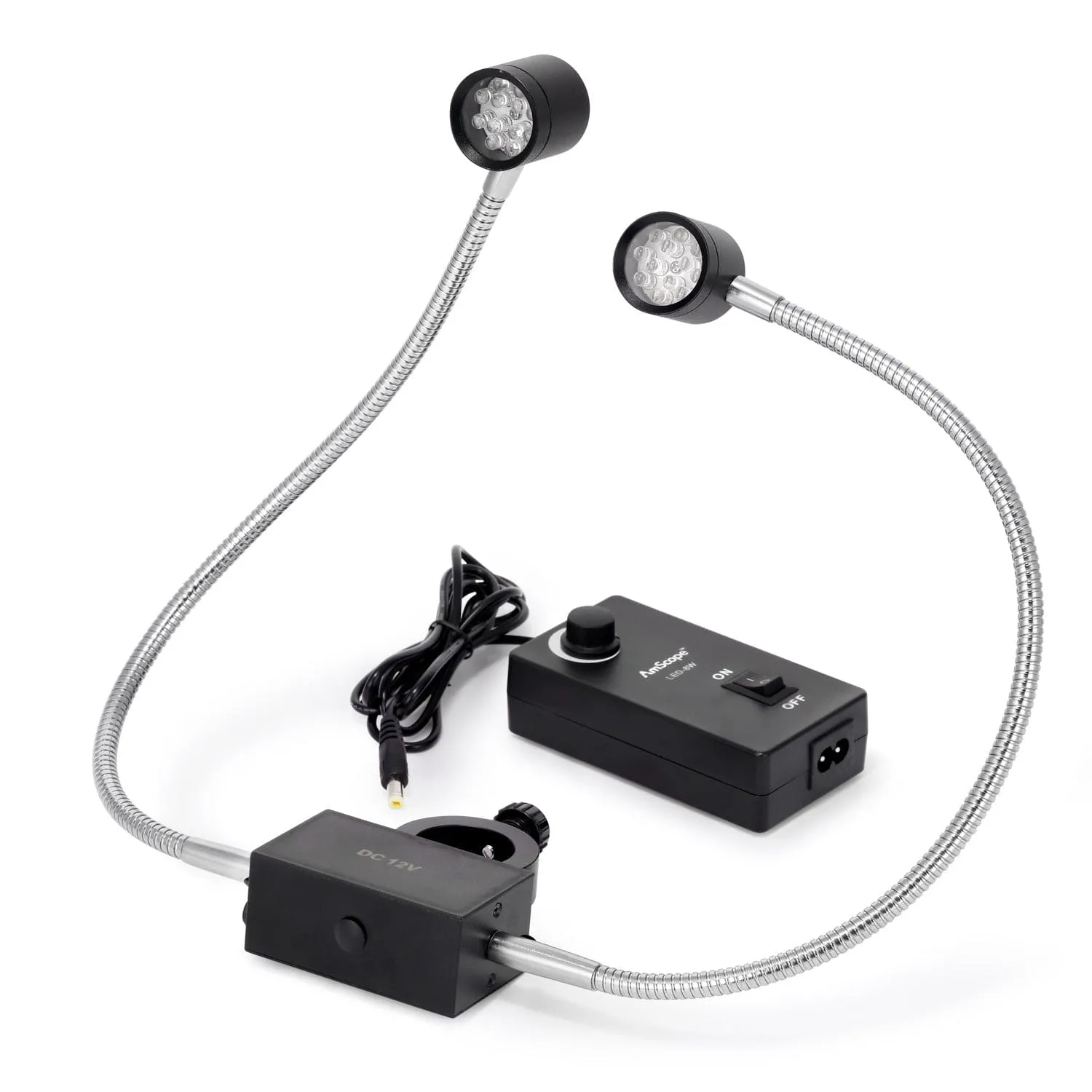

This package includes a 8W LED Dual Gooseneck Illuminator for bright and cool illumination. This lightweight illuminator mounts to the microscope’s pillar stand (23mm) and projects a smooth, encompassing field of light over objects, eliminating most shadows. The dual goosenecks allow for extra flexibility in lighting for your needs. For added convenience, a separate power-controller is used to manage the brightness. Whether used as the sole light-source or in combination with additional illuminators, the dual goosenecks produce a focused light pattern for virtually any application. Energy-efficient and producing low heat, this illuminator can be used with biological specimens as well as industrial.

Specifications

Microscope Head
Head Type Trinocular, 45° incline, 360° rotatable
Optical System Greenough stereoscopic
Interpupillary Adjustment Compensation-free gemel, 54-76mm
Ocular-port Diameter 30mm
Dioptric Adjustment Both oculars, ±5dp
Eyepieces 10X
Photo Port height-adjustable 23mm tube, SM series
Objective Lenses 0.7X-4.5X zoom
Objective Numerical Aperture 0.065 @ 4.5X
0.02 @ 0.7X
Objective Resolution 195 lp/mm @ 4.5X
60 lp/mm @ 0.7X
Native Field-of-View 4.4mm-28.6mm
Native Working Distance 100mm
Auxiliary Lens Mount 48mm thread
Auxiliary (Barlow) Lenses Included none included
Stand
Stand Type Double-arm boom-stand with ball-bearing movement, cast-steel base
Stand Dimensions 20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2"
Focusing-block Focus Range 50mm

Packing List:

  • One trinocular stereo microscope head
  • One photo port attachment
  • 10X eyepiece(s)
  • One pair eye-guards
  • One double-arm boom-stand with focusing rack
  • One dual gooseneck illuminator
  • One power controller
  • One power cable
  • One ring-light mounting adapter

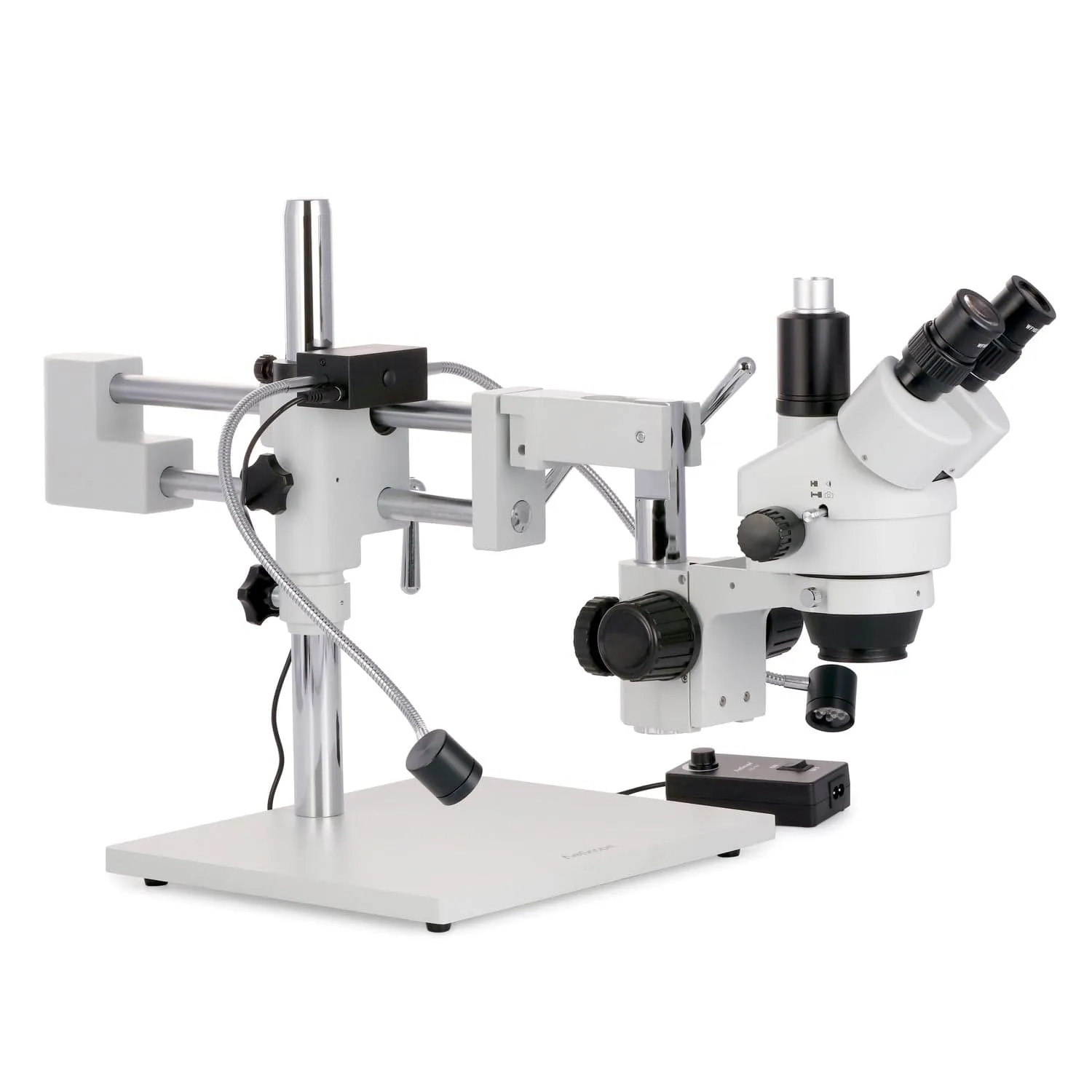

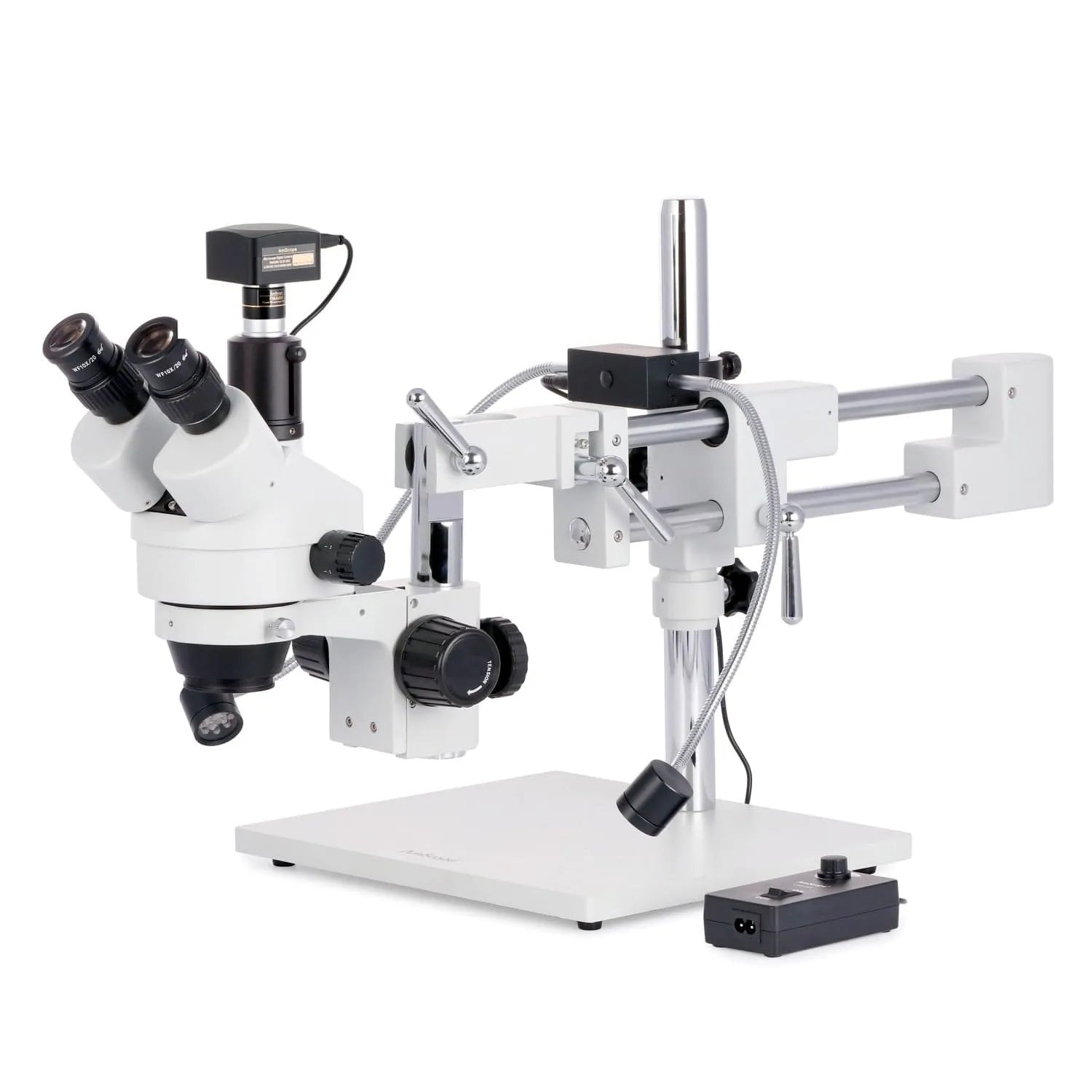

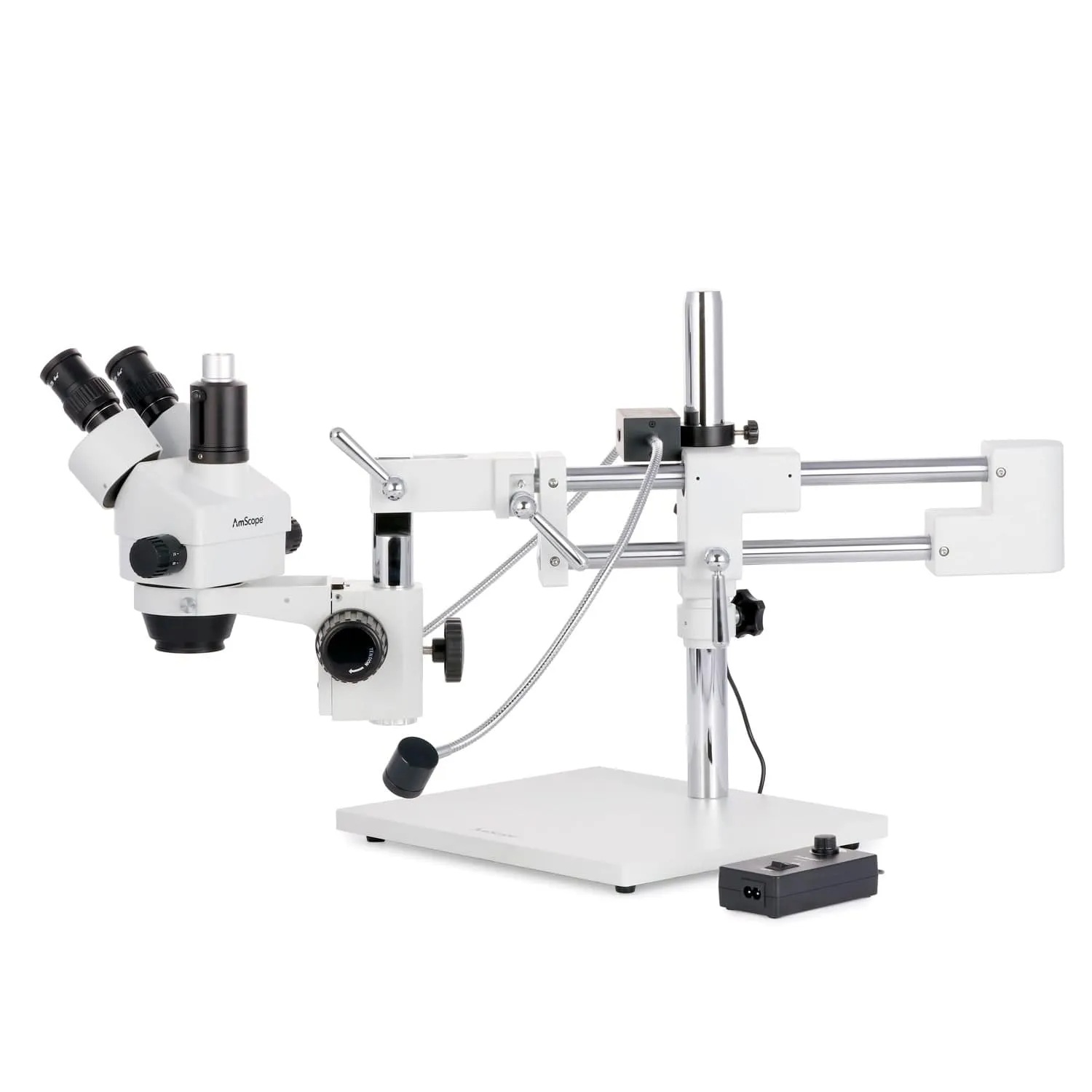

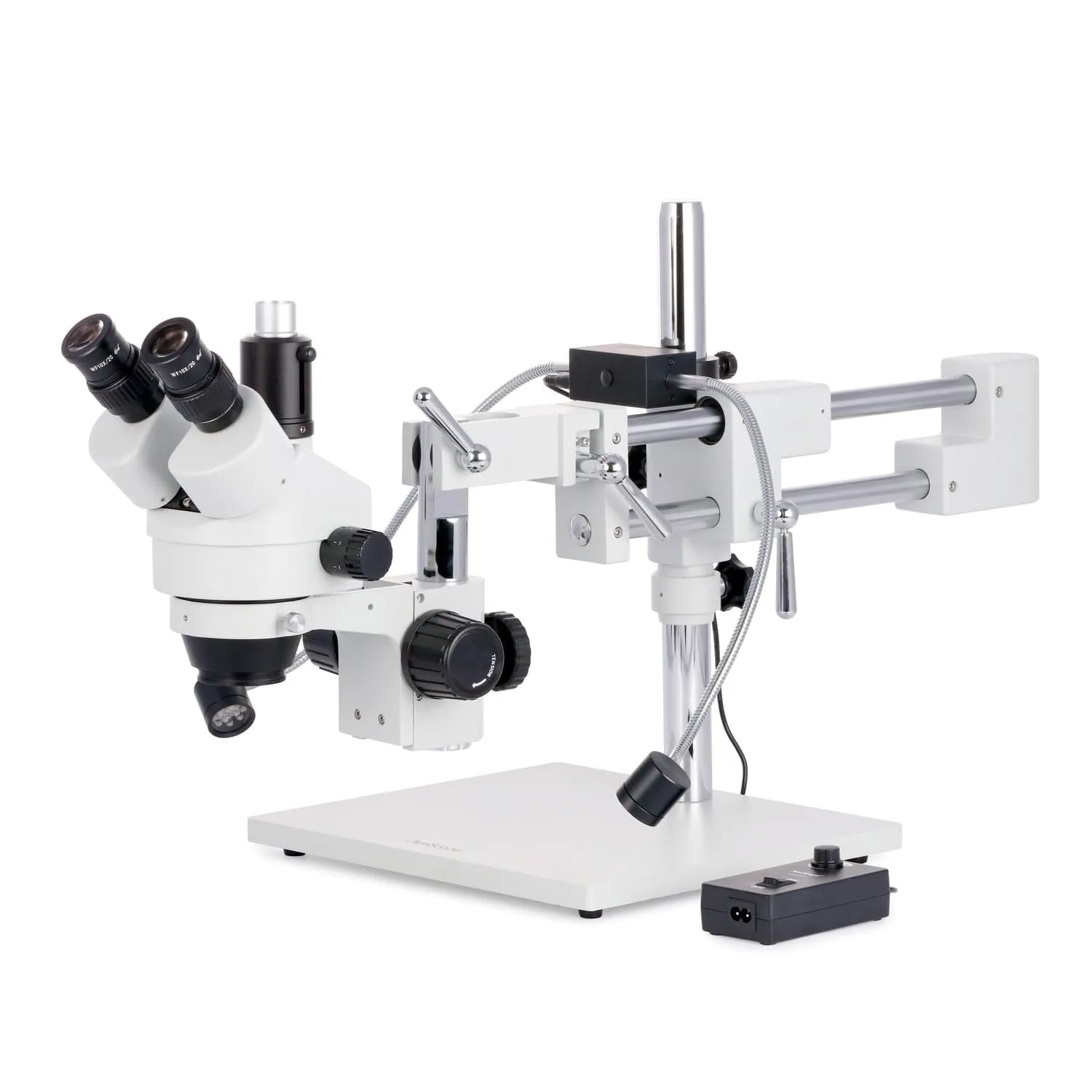

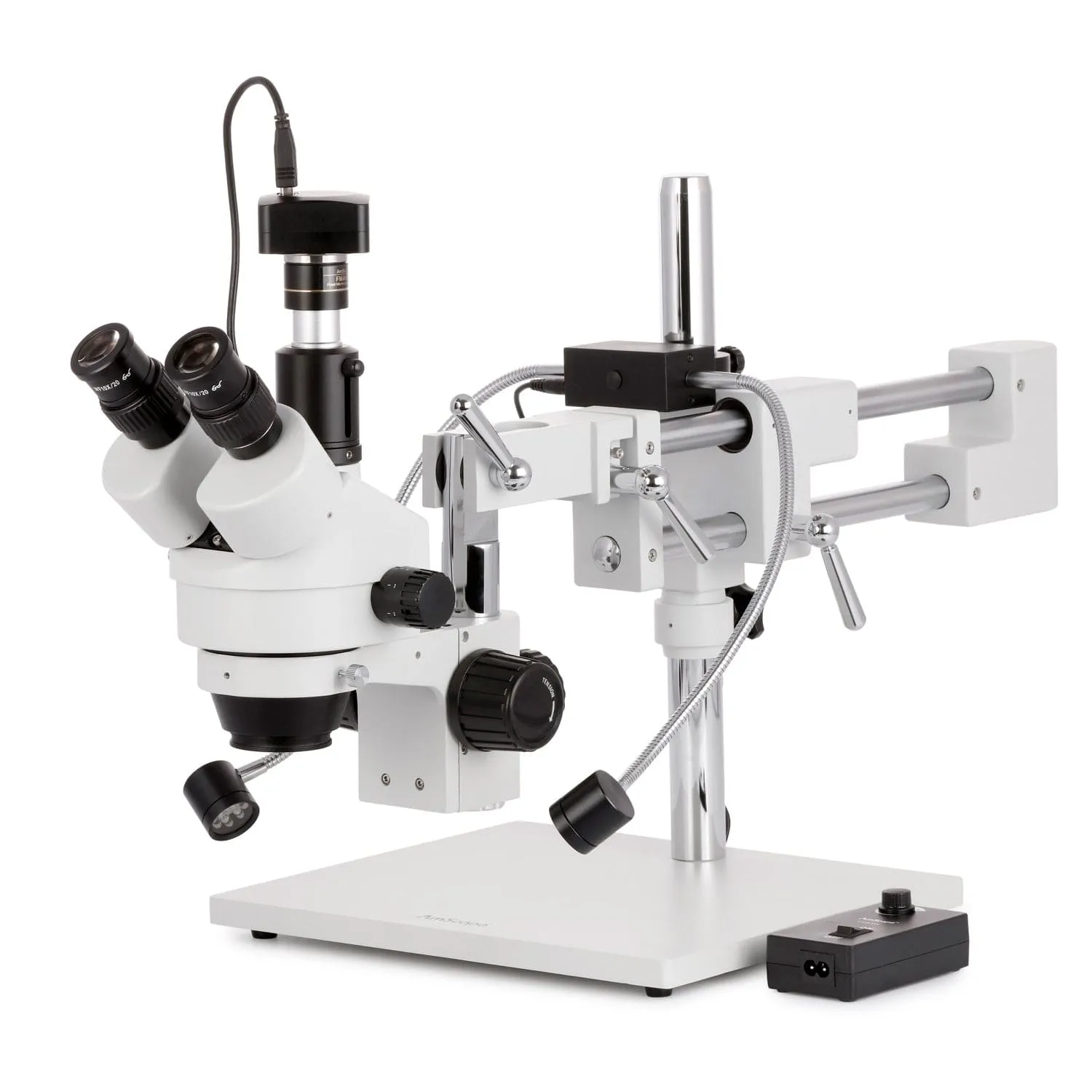

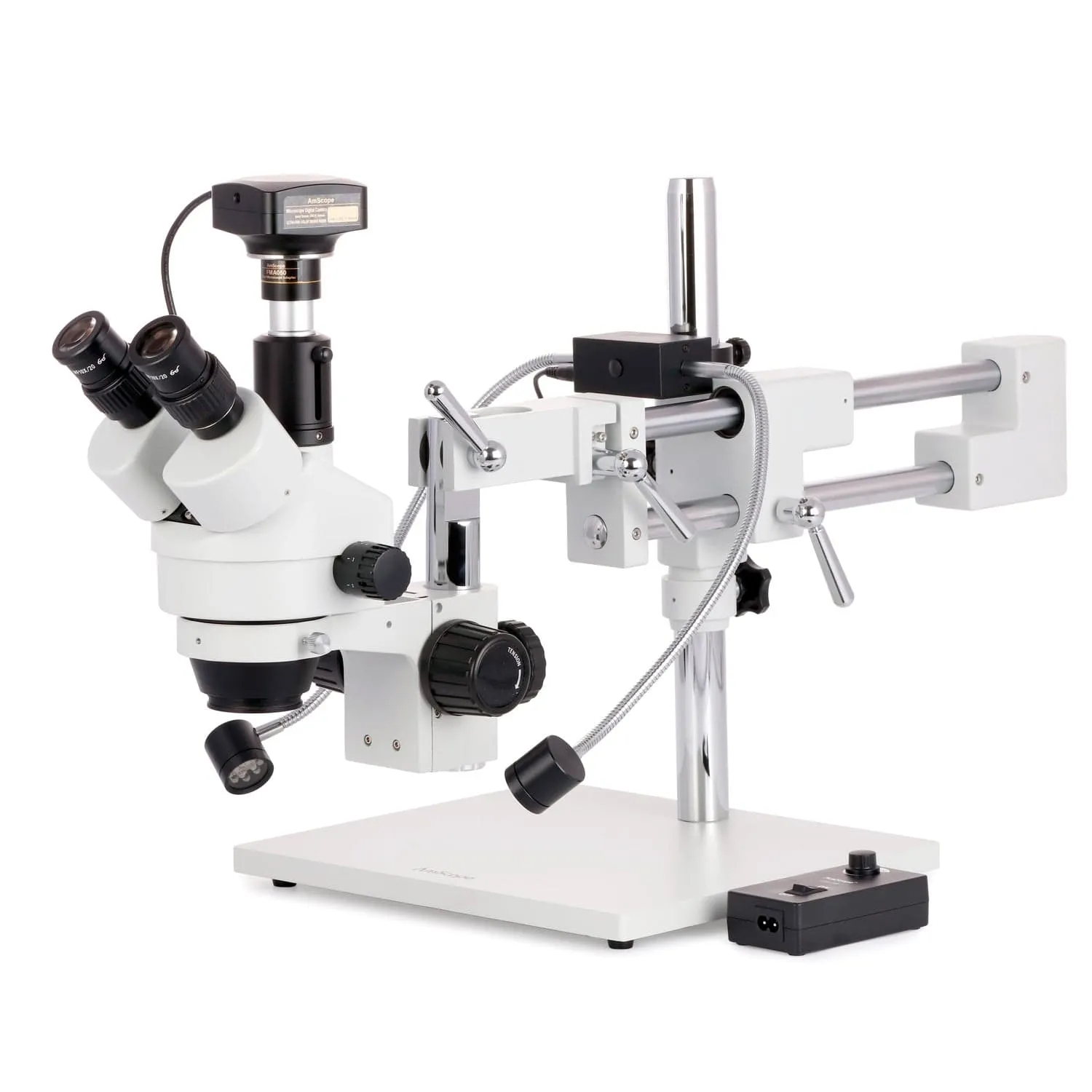

AmScope SM-4T Series Trinocular Zoom Stereo Microscope 7X-45X Magnification with 8W LED Dual Gooseneck Illuminator on Double Arm Boom Stand Optional Digital Camera
  • noneselected
  • USB20
  • USB30
  • noneselected
  • 13MP
  • 30MP
  • 200MP

$ 68.41

$ 52.62
